3*70 Mm2 Copper Core Armoured Electrical Cable with IEC60502
Model specification:
N2XBY cable core number: 1, 2, 3, 4, 5, 3+1, 3+2, 4+1
N2XBY cable cross-sectional area: 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm²
N2XBY cable category: flame-retardant N2XBY cable, fire-resistant N2XBY cable, low-smoke halogen-free N2XBY cable, low-smoke halogen-free fire-resistant N2XBY cable, low-smoke halogen-free flame-retardant N2XBY cable, low-smoke halogen-free flame-retardant fire-resistant type N2XBY cable
Characteristic:
Long-term allowable working temperature: The long-term working temperature of the conductor should not exceed 90℃, and the high working temperature of the short circuit should not exceed 250℃ (the long duration of z should not exceed 5s);
The cable laying temperature should not be lower than 0℃;
z Small bending radius (D is the outer diameter of the cable)
Single core cable: 15D;
Multi-core cable: 12D.
Special characteristics
Flame-retardant products: flame-retardant properties meet the requirements of GB/T 19666-2005 "General Rules for Flame-retardant and Fire-Resistant Wires and Cables";
Flame-retardant and fire-resistant products: flame-retardant and fire-resistant properties meet the requirements of GB/T 19666-2005 "General Rules for Flame-retardant and Fire-resistant Wires and Cables".
Specificaiton:
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
| Product name | Armoured Electrical Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 0.6/1 KV |
| Conductor material | Copper/Aluminum |
| Insulation Material | XLPE/PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 - 400MM2 |
FAQ:
Q1. Are you trading company or manufacturer ?
A: We are professional manufacture with our own independent export rights.
Q2. What if I don’t find the type and size of cable I need on this page?
A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.
Q3. Can you produce according to the samples ?
A: Yes, we can produce by your samples or technical drawings.
Q4. How long is you delivery time ?
A: Depends on your quantity, normally 1-3 weeks.
Armoured Electrical Cable
Product Tags:
|
|

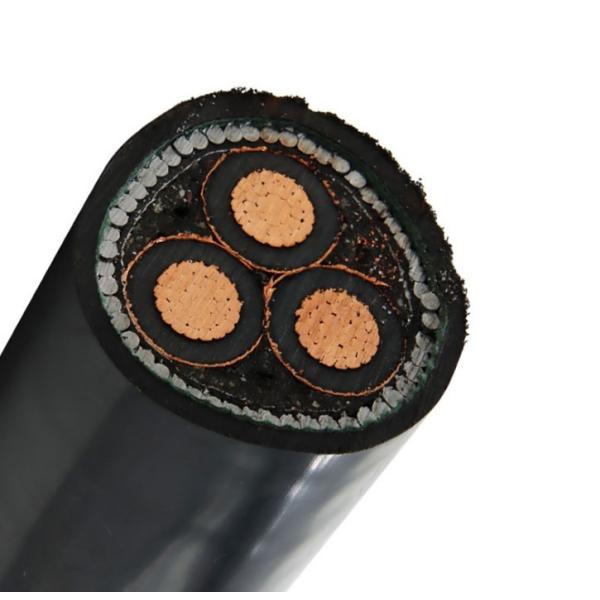

3*70 MM2 STA SWA Armoured Electrical Cable Copper Core Images
|
